Manual 06 - LCD or Digitizer

Written By: James Linder
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

31

Time Required

Suggest a time??

Sections

12

Flags

0

  1. Power down the device. Open the SIM tray slot. Push the SIM card in and it will pop out. Repeat with the SD card, if present. Place both in COMPARTMENT A.

    • Power down the device.

    • Open the SIM tray slot. Push the SIM card in and it will pop out. Repeat with the SD card, if present. Place both in COMPARTMENT A.

    Edit

  2. Insert guitar pick in the upper-right corner between the battery cover and display assembly. Work your way down the right side to release clips holding the battery cover in place. Work your way down the right side to release clips holding the battery cover in place.

    • Insert guitar pick in the upper-right corner between the battery cover and display assembly.

    • Work your way down the right side to release clips holding the battery cover in place.

    Edit

  3. Work your way across the bottom, then up the opposite side to continue releasing clips. Work your way across the bottom, then up the opposite side to continue releasing clips.

    • Work your way across the bottom, then up the opposite side to continue releasing clips.

    Edit

  4. Be careful while performing this step: Picture 1: Release the battery cover clips near the HDMI port. Picture 2: Release clips behind the charging and HDMI ports.

    • Be careful while performing this step:

    • Picture 1: Release the battery cover clips near the HDMI port.

    • Picture 2: Release clips behind the charging and HDMI ports.

    • Picture 3: Release clips below rear camera trim.

    Edit

  5. Adhesive holds the battery cover in place. Don't try to remove the battery cover just yet: Picture 1: Heat the battery cover with low-level (100° Celsius heat) for 30 seconds. Picture 2: Use your fingers to peel away the battery cover slightly.

    • Adhesive holds the battery cover in place. Don't try to remove the battery cover just yet:

    • Picture 1: Heat the battery cover with low-level (100° Celsius heat) for 30 seconds.

    • Picture 2: Use your fingers to peel away the battery cover slightly.

    • Picture 3: Push your finger under the Motorola symbol.

    • The Motorola symbol will stay adhered to the battery as you remove the battery cover if you're not careful!

    Edit

  6. Continue peeling off battery cover, releasing the clips holding it in place. Place battery cover in ZONE I.

    • Continue peeling off battery cover, releasing the clips holding it in place.

    • Place battery cover in ZONE I.

    Edit

  7. Picture 1: Remove ten 4.8mm T5 Torx screws. Place in SLOT 1. Picture 2: Begin separating the mid-frame from the front panel in the upper-left hand corner (opposite the headphone jack). Picture 3: Continue working down the side, opposite the buttons.

    • Picture 1: Remove ten 4.8mm T5 Torx screws. Place in SLOT 1.

    • Picture 2: Begin separating the mid-frame from the front panel in the upper-left hand corner (opposite the headphone jack).

    • Picture 3: Continue working down the side, opposite the buttons.

    Edit

  8. Picture 1: Be careful not to damage the volume rocker clips (red squares) while performing this step: Pictures 2 & 3: Separate the mid-frame under the volume rocker with a guitar pick. Pictures 2 & 3: Separate the mid-frame under the volume rocker with a guitar pick.

    • Picture 1: Be careful not to damage the volume rocker clips (red squares) while performing this step:

    • Pictures 2 & 3: Separate the mid-frame under the volume rocker with a guitar pick.

    Edit

  9. Finish peeling up the mid-frame.

    • Finish peeling up the mid-frame.

    • Place either the mid-frame or front panel in Sandbox ZONE II, depending on the repair needed.

    Edit

  10. Pictures 1 & 2: Remove the pink rubber screw cover and place in SLOT 2. Picture 3: Remove two 3.3mm T5 Torx screws. Place in SLOT 2 (with cover). Picture 3: Remove two 3.3mm T5 Torx screws. Place in SLOT 2 (with cover).

    • Pictures 1 & 2: Remove the pink rubber screw cover and place in SLOT 2.

    • Picture 3: Remove two 3.3mm T5 Torx screws. Place in SLOT 2 (with cover).

    Edit

  11. The battery is held down with mild adhesive: Picture 1: Pull on battery tab to create just enough space to wedge flat end of spudger below battery. Picture 2: Work your way to the bottom to release the adhesive.

    • The battery is held down with mild adhesive:

    • Picture 1: Pull on battery tab to create just enough space to wedge flat end of spudger below battery.

    • Picture 2: Work your way to the bottom to release the adhesive.

    • Picture 3: Work the battery up, opening it like a book from the left edge.

    Edit

  12. Place the battery on top of the battery cover in ZONE I.

    • Place the battery on top of the battery cover in ZONE I.

    Edit

  13. Remove ten silver 4.2mm T5 Torx screws holding down metal chassis. Place in SLOT 3. Lift metal chassis away and place in ZONE III

    • Remove ten silver 4.2mm T5 Torx screws holding down metal chassis. Place in SLOT 3.

    • Lift metal chassis away and place in ZONE III

    Edit

  14. Picture 1: Use blue pry tool to disconnect digitizer cable. Picture 2: Disconnect LCD cable. Picture 3: Remove blue microphone cover. Place in COMPARTMENT B.

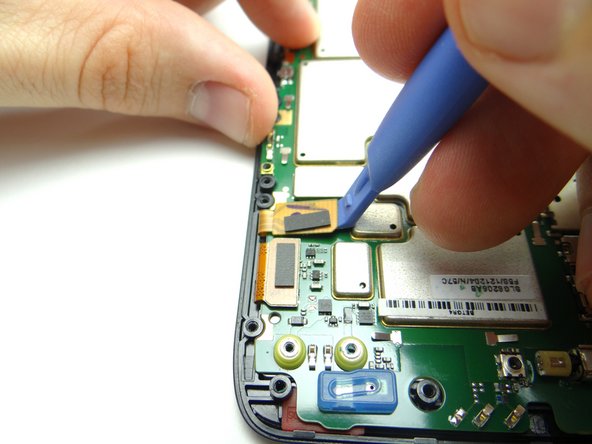

    • Picture 1: Use blue pry tool to disconnect digitizer cable.

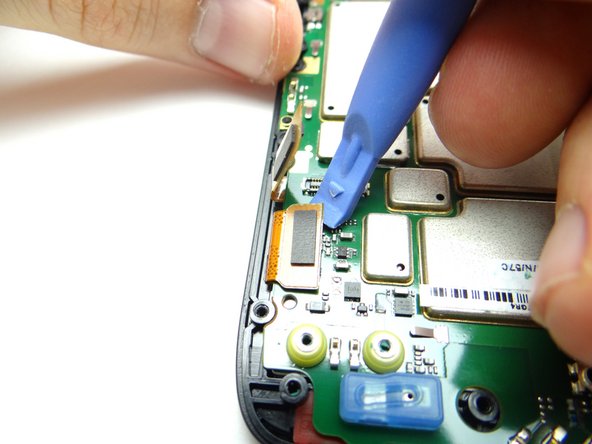

    • Picture 2: Disconnect LCD cable.

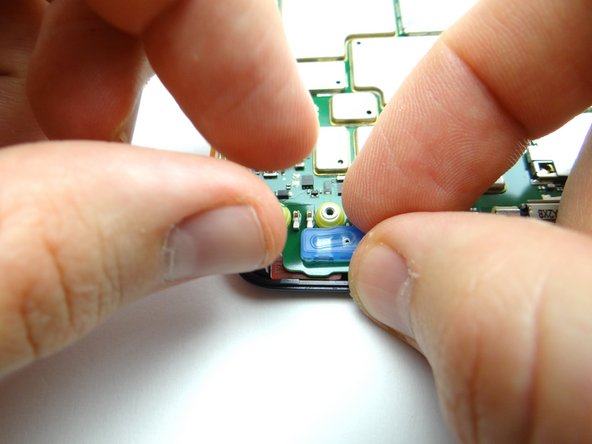

    • Picture 3: Remove blue microphone cover. Place in COMPARTMENT B.

    Edit

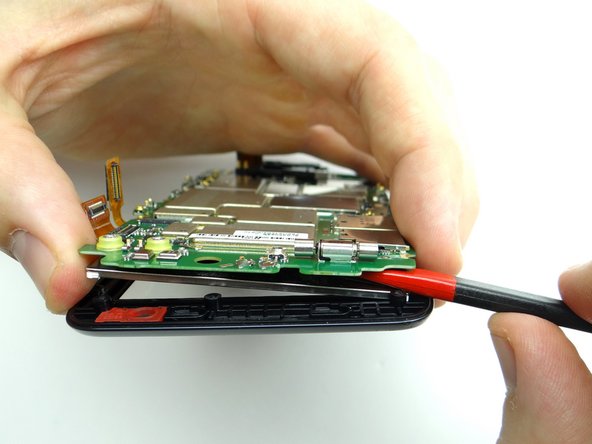

  15. The LCD is held to the logic board with mild adhesive: Picture 1: Insert spudger between the LCD and logic board where pictured.

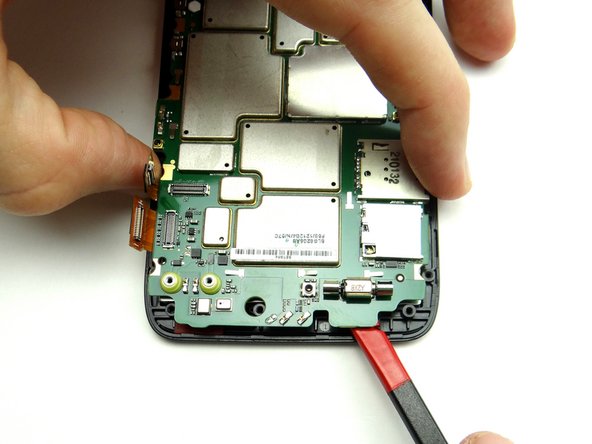

    • The LCD is held to the logic board with mild adhesive:

    • Picture 1: Insert spudger between the LCD and logic board where pictured.

    • Picture 2: Pull up logic board and LCD with your fingers while carefully separating the delicate LCD from the logic board.

    Edit

  16. Reinsert the spudger above the SIM card tray. Continue separating logic board from LCD.

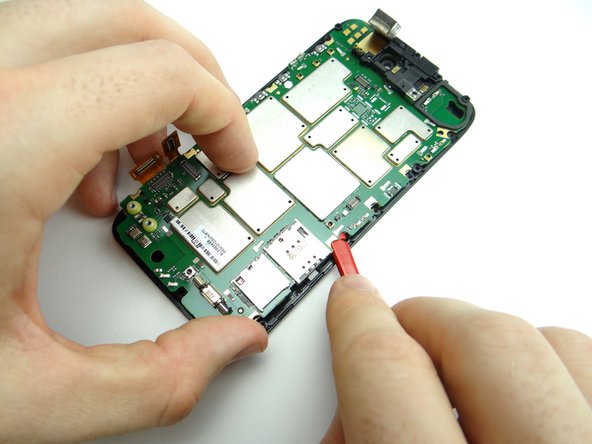

    • Reinsert the spudger above the SIM card tray.

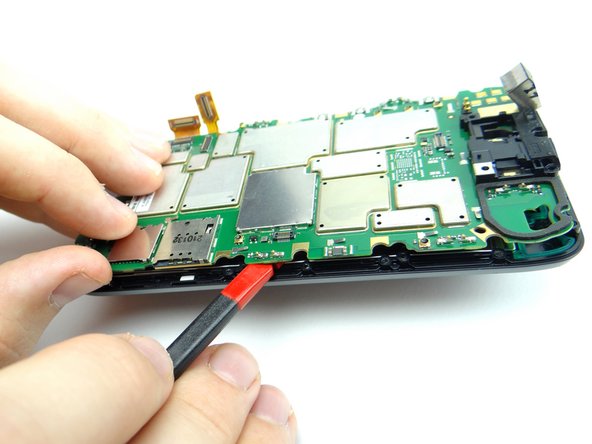

    • Continue separating logic board from LCD.

    Edit

  17. Picture 1: Insert the spudger near the top of the right side as shown. Picture 2: Gently twist the spudger clockwise. Picture 3: Use your fingers to pick up the side of the logic board with the SIM and SD card trays.

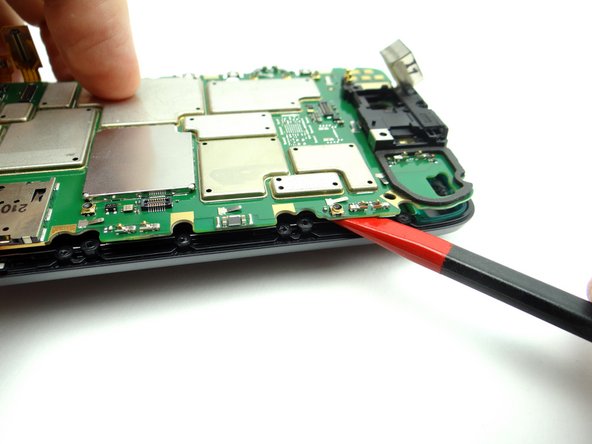

    • Picture 1: Insert the spudger near the top of the right side as shown.

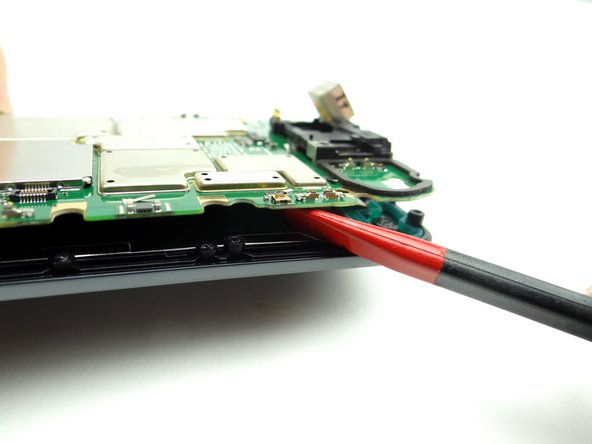

    • Picture 2: Gently twist the spudger clockwise.

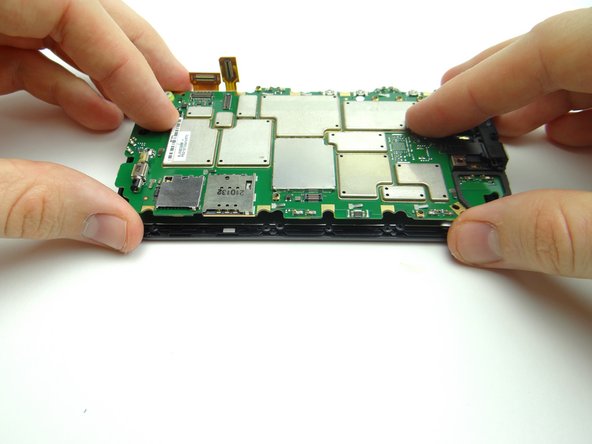

    • Picture 3: Use your fingers to pick up the side of the logic board with the SIM and SD card trays.

    Edit

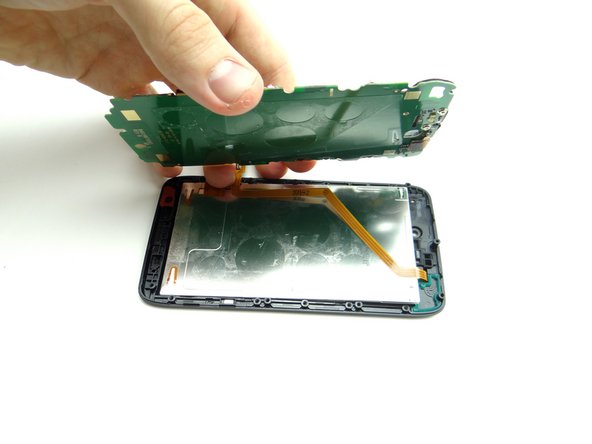

  18. Gently separate the logic board from the display assembly. Place the logic board or display assembly in ZONE IV, depending on the repair needed.

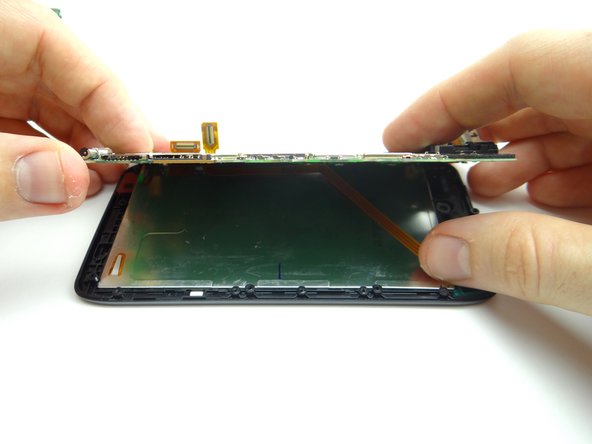

    • Gently separate the logic board from the display assembly.

    • Place the logic board or display assembly in ZONE IV, depending on the repair needed.

    Edit

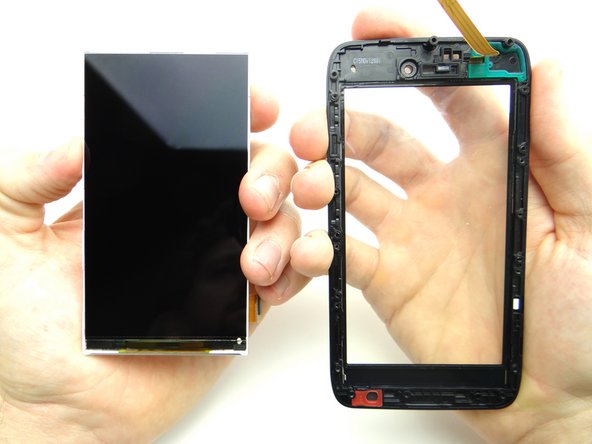

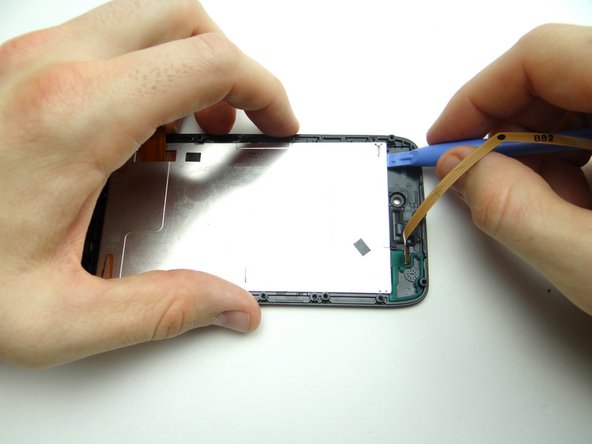

  19. Use a blue pry tool to carefully lift the top edge of the LCD until you can grab the sides with your fingers. Gently pull the LCD and digitizer glass apart. Gently pull the LCD and digitizer glass apart.

    • Use a blue pry tool to carefully lift the top edge of the LCD until you can grab the sides with your fingers.

    • Gently pull the LCD and digitizer glass apart.

    Edit

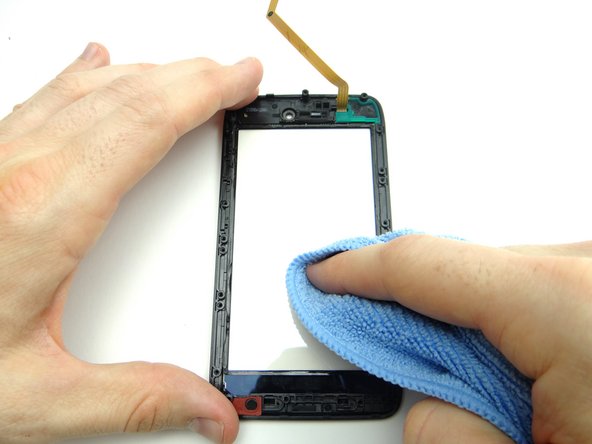

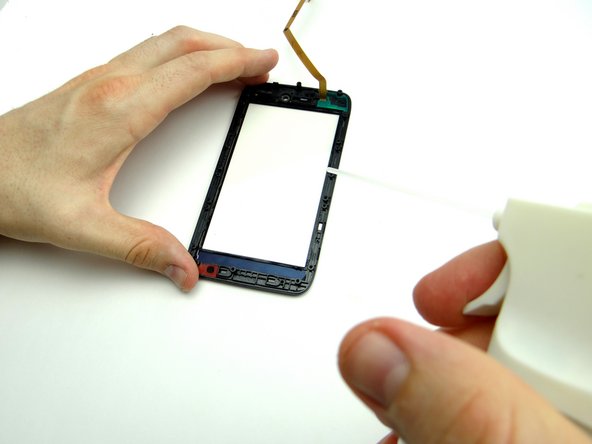

  20. If you're reusing the digitizer, clean it with a chamois cloth and compressed air. If you're reusing the digitizer, clean it with a chamois cloth and compressed air.

    • If you're reusing the digitizer, clean it with a chamois cloth and compressed air.

    Edit

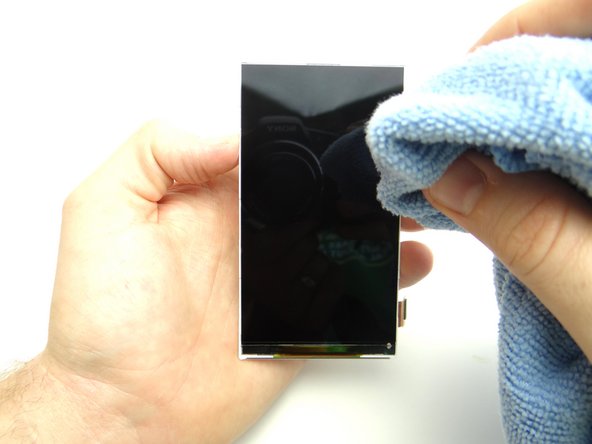

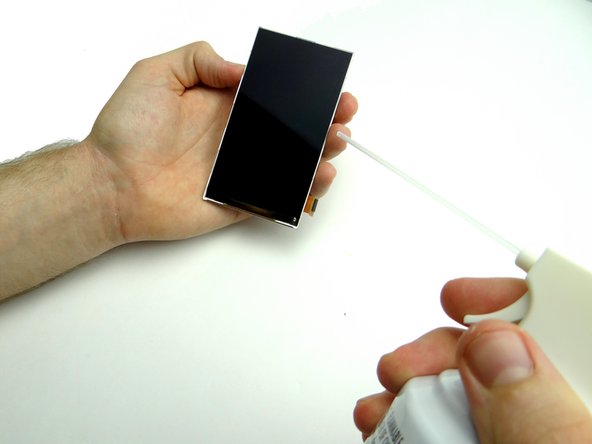

  21. If you're reusing the LCD, clean it with a chamois cloth and compressed air. If you're reusing the LCD, clean it with a chamois cloth and compressed air.

    • If you're reusing the LCD, clean it with a chamois cloth and compressed air.

    Edit

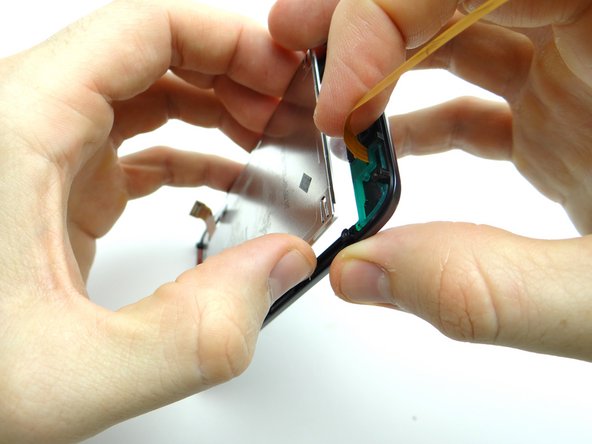

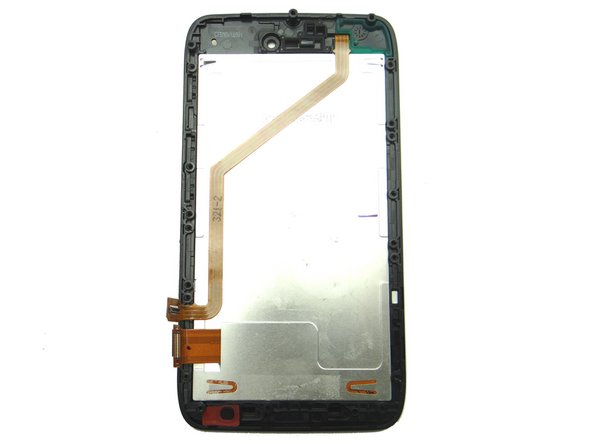

  22. Seat the LCD on the digitizer, taking care not to touch the LCD or the interior of the digitizer glass. Seat the LCD on the digitizer, taking care not to touch the LCD or the interior of the digitizer glass. Seat the LCD on the digitizer, taking care not to touch the LCD or the interior of the digitizer glass.

    • Seat the LCD on the digitizer, taking care not to touch the LCD or the interior of the digitizer glass.

    Edit

  23. Seat the logic board on the display assembly: Pictures 1 & 2: Feed the standoff at the top of the display through the notch at the top of the logic board. Picture 3: Feed the standoff at the bottom of the display through the opening on the logic board. Gently push the center of the logic board into place.

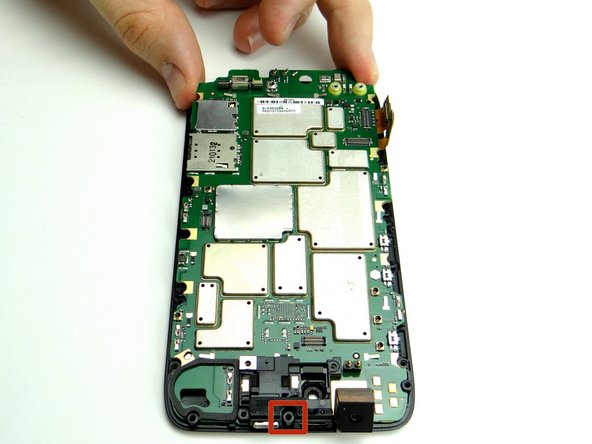

    • Seat the logic board on the display assembly:

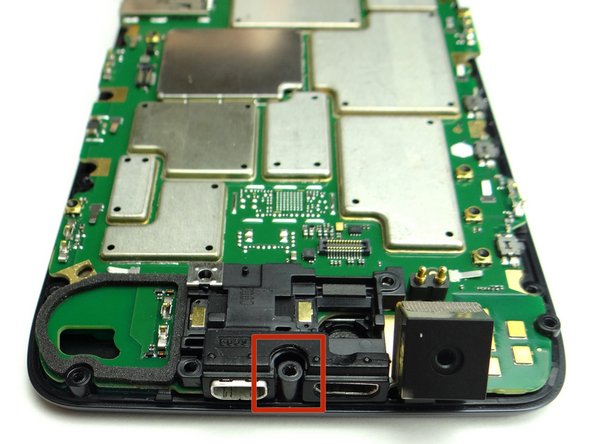

    • Pictures 1 & 2: Feed the standoff at the top of the display through the notch at the top of the logic board.

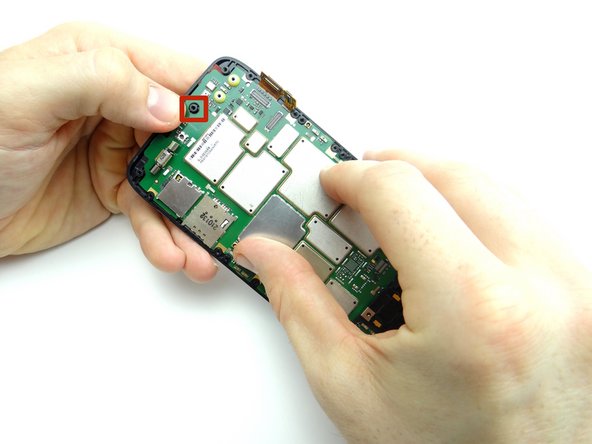

    • Picture 3: Feed the standoff at the bottom of the display through the opening on the logic board. Gently push the center of the logic board into place.

    Edit

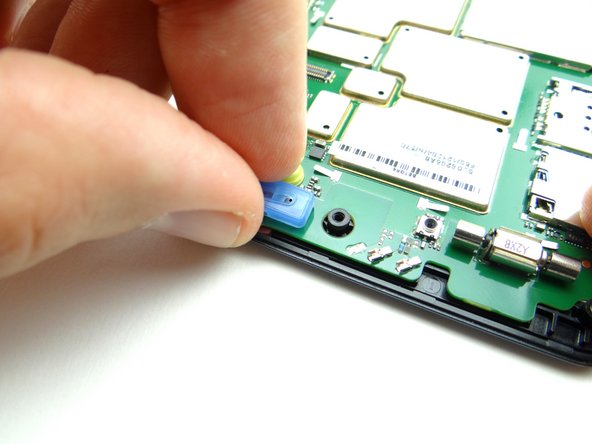

  24. Picture 1: Replace blue microphone cover from COMPARTMENT B. Picture 2: Seat LCD cable. Picture 3: Seat digitizer cable.

    • Picture 1: Replace blue microphone cover from COMPARTMENT B.

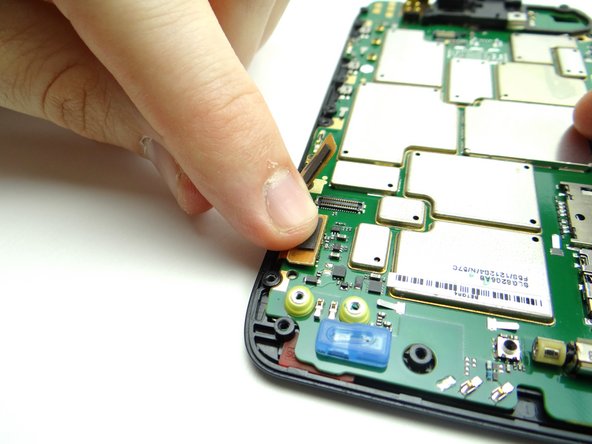

    • Picture 2: Seat LCD cable.

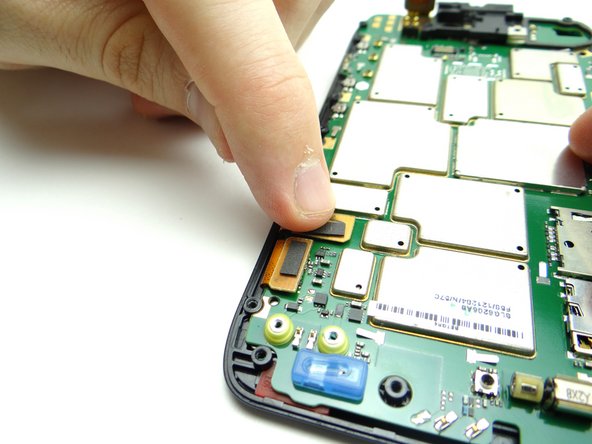

    • Picture 3: Seat digitizer cable.

    Edit

  25. Seat metal chassis from ZONE III: Replace ten silver 4.2mm T5 Torx screws holding down metal chassis from SLOT 3.

    • Seat metal chassis from ZONE III:

    • Replace ten silver 4.2mm T5 Torx screws holding down metal chassis from SLOT 3.

    Edit

  26. Replace battery from ZONE I. Replace battery from ZONE I.

    • Replace battery from ZONE I.

    Edit

  27. Picture 1: Replace two 3.3mm T5 Torx screws from SLOT 2. Pictures 2 & 3: Replace the pink rubber screw cover, also in SLOT 2. Pictures 2 & 3: Replace the pink rubber screw cover, also in SLOT 2.

    • Picture 1: Replace two 3.3mm T5 Torx screws from SLOT 2.

    • Pictures 2 & 3: Replace the pink rubber screw cover, also in SLOT 2.

    Edit

  28. Picture 1: Seat mid-frame on phone: Pictures 2 & 3: Pivot the volume rocker on the mid-frame around the volume rocker tabs on the logic board, then snap this area of the mid-frame into place first. Pictures 2 & 3: Pivot the volume rocker on the mid-frame around the volume rocker tabs on the logic board, then snap this area of the mid-frame into place first.

    • Picture 1: Seat mid-frame on phone:

    • Pictures 2 & 3: Pivot the volume rocker on the mid-frame around the volume rocker tabs on the logic board, then snap this area of the mid-frame into place first.

    Edit

  29. Picture 1: Continue snapping mid-frame into place. Picture 2: Check the perimeter to ensure the mid-frame is completely seated. Picture 3: Replace ten 4.8mm black T5 Torx screws from SLOT 1.

    • Picture 1: Continue snapping mid-frame into place.

    • Picture 2: Check the perimeter to ensure the mid-frame is completely seated.

    • Picture 3: Replace ten 4.8mm black T5 Torx screws from SLOT 1.

    Edit

  30. Picture 1: From ZONE I seat battery cover, buttons side first. Picture 2: Push battery cover into place. Picture 3: Check around the perimeter to ensure all edges are snapped into place.

    • Picture 1: From ZONE I seat battery cover, buttons side first.

    • Picture 2: Push battery cover into place.

    • Picture 3: Check around the perimeter to ensure all edges are snapped into place.

    Edit

  31. Replace SIM card and SD card from COMPARTMENT A. Power up and test device.

    • Replace SIM card and SD card from COMPARTMENT A.

    • Power up and test device.

    Edit
